2009 Bombardier Learjet 45XR

American Aircraft Sales presents this 2009 Learjet 45XR for sale, featuring BR engine upgrades, engines on MSP Gold, APU on MSP, Evolved Maintenance Program, and FMS UNS-1Ew upgrade. Currently configured for EMS (air medical), it can be reconverted to an executive interior for 9 passengers, which is stored and will be delivered to the new owner.

HIGHLIGHTS

• BR engine upgrades

• Engines on MSP Gold / APU on MSP

• Evolved Maintenance Program

• FMS UNS-1Ew

• Approved MNPS, P-RNAV, and LPV

• Increased MTOW: 21,500 lb / MZFW: 16,500 lb

AIRFRAME

TTSN: 8,243.37 hours / 6,137 landings

ENGINES – Honeywell TFE731-20BR-1B

• Engine 1: S/N P-132151C – 6,652.37 h / 4,932 cycles

• Engine 2: S/N P-132152C – 6,715.49 h / 4,977 cycles

• Enrolled in MSP Gold

APU

RE100 (LJ) S/N P-432 – 2,355.38 h / 6,137 cycles – enrolled in MSP

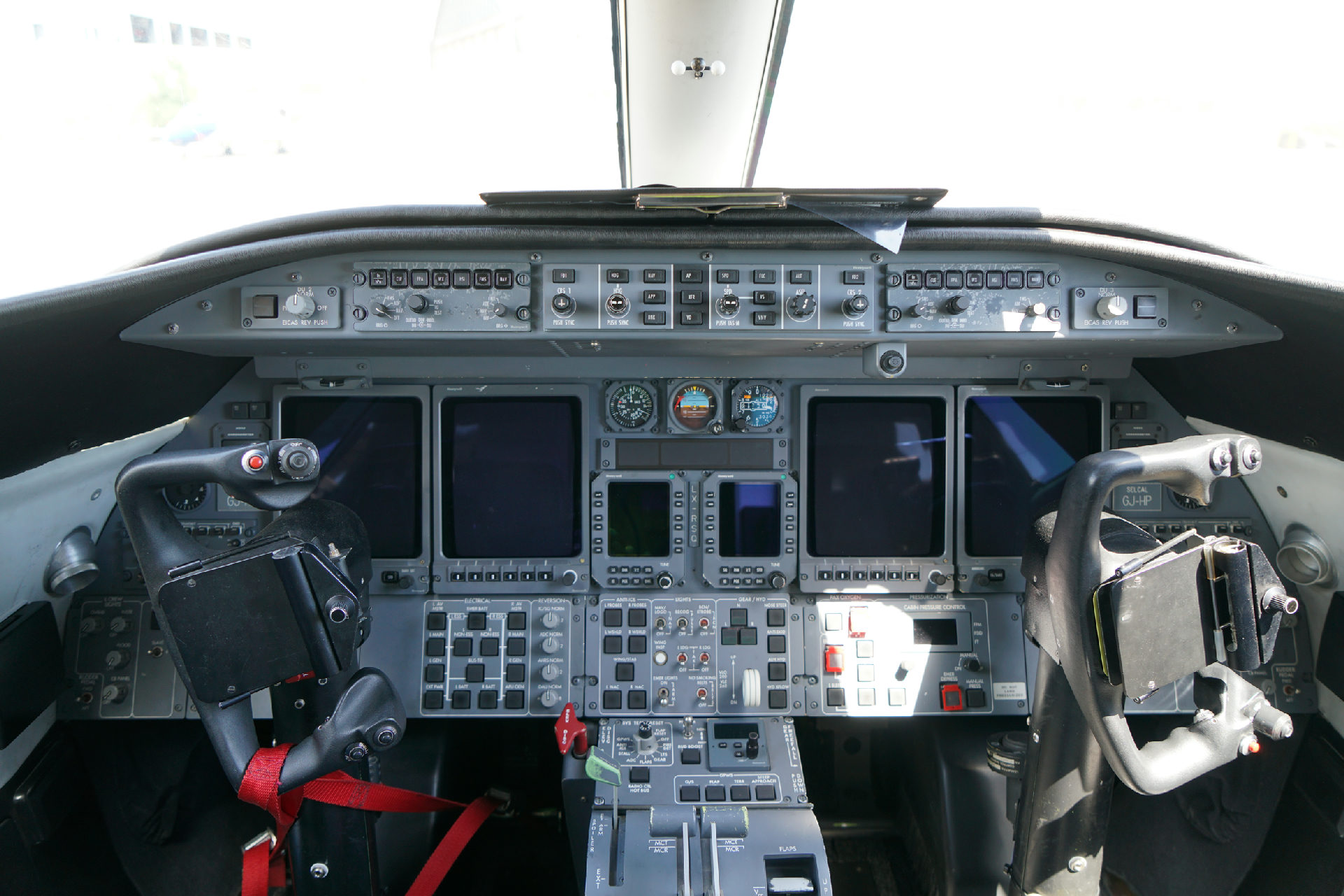

AVIONICS

• Communication: 2 Honeywell RCZ-833M (8.33 kHz / Immunity); 2 HF KHF-1050 with RMU-855; SELCAL; Satcom ISAT-200A

• Air Data Computers: 2 Honeywell AZ-950

• AHRS: 2 Honeywell LCR-100

• CVR: Honeywell SSCVR (120 min) with 90-day ULB

• FDR: SSFDR (25 h) with 90-day ULB (L3 FA2100)

• Data Acquisition Units: 2 DA-800

• ELT: Artex C-406-2

• EGPWS: Honeywell Mark V

• FMS: 2 Universal UNS-1Ew (LPV/SBAS/WAAS)

• Navigation: 2 Honeywell RNZ-851

• Radar Altimeter: Honeywell RT-300

• TCAS: RT-951 TCAS 2000 (7.1)

• Weather Radar: Primus 880 (WU-660)

• EFIS: 4 DU-870 EICAS

• Transponders: 2 Mode-S Enhanced

• Exempt from CPDLC/Link-2000 requirement

ADDITIONAL FEATURES

• All European mandates: P-RNAV, B-RNAV, RNP, APCH

• Expanded O2 capacity (77 cu ft)

• EMS air ambulance technology (STC 10038064)

• Replacement of the thrust reverser control unit (STC ST 10526SC / EASA.IM.A.S.02112 / SB45-78-12)

• Airshow 410 and CD Changer

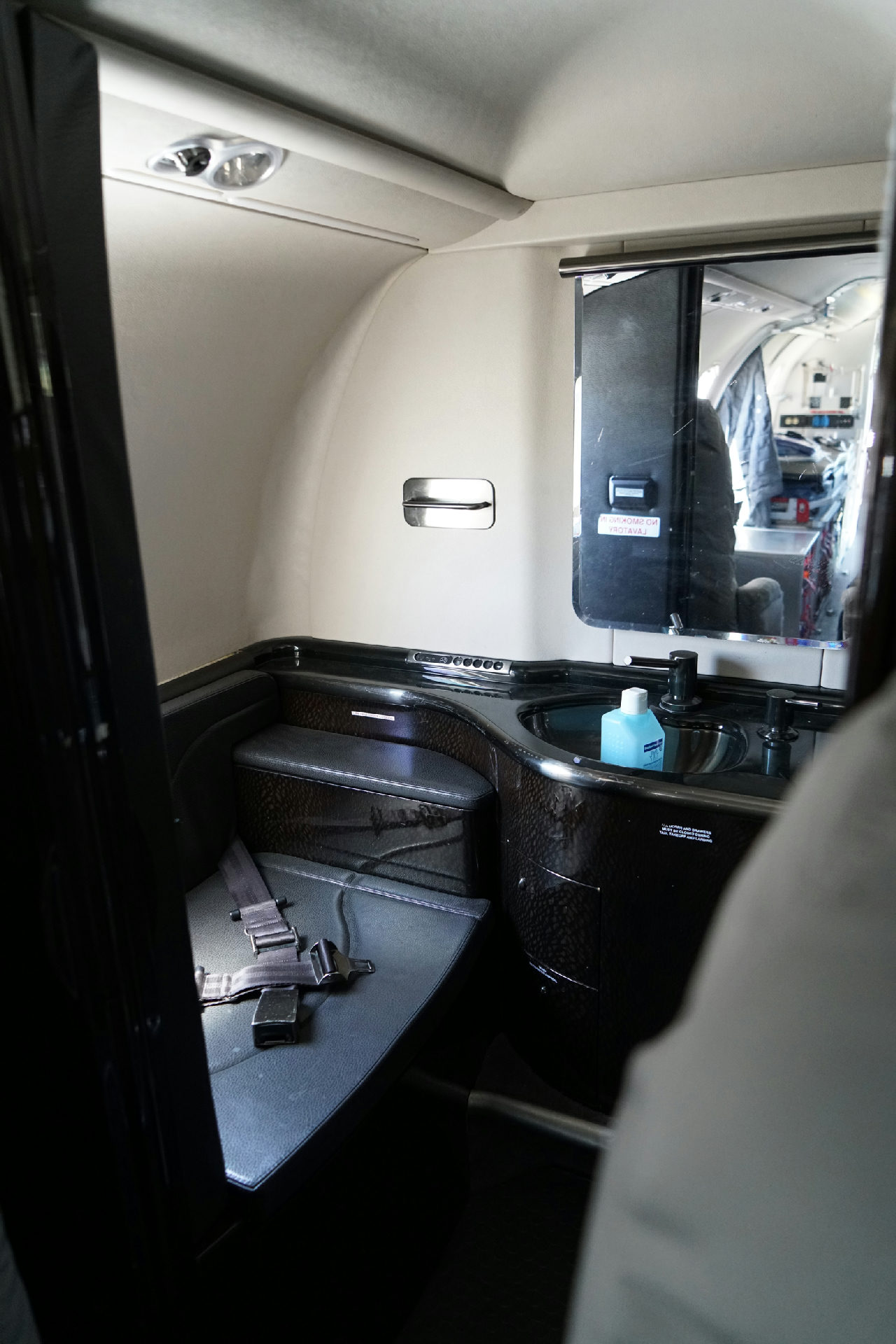

INTERIOR

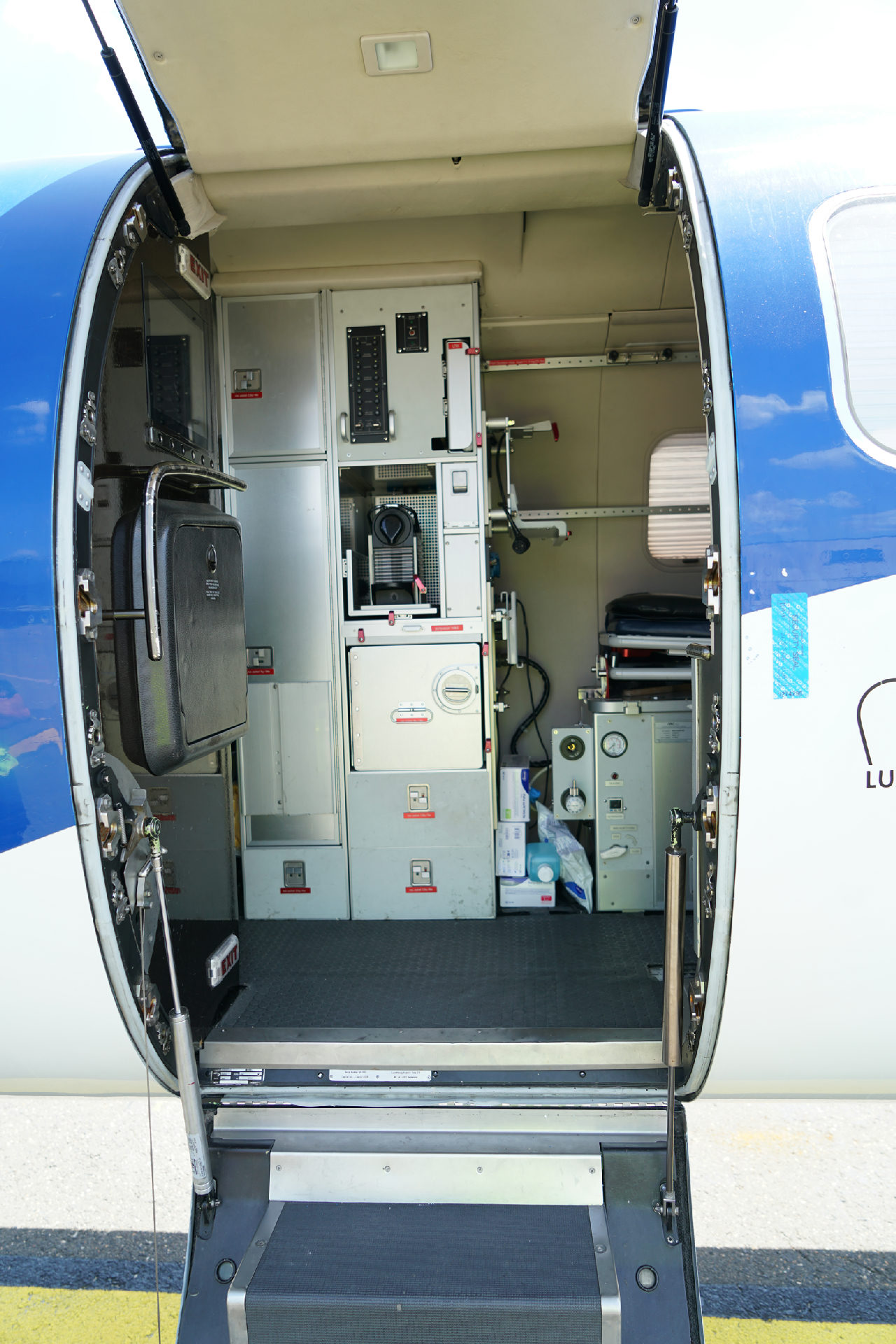

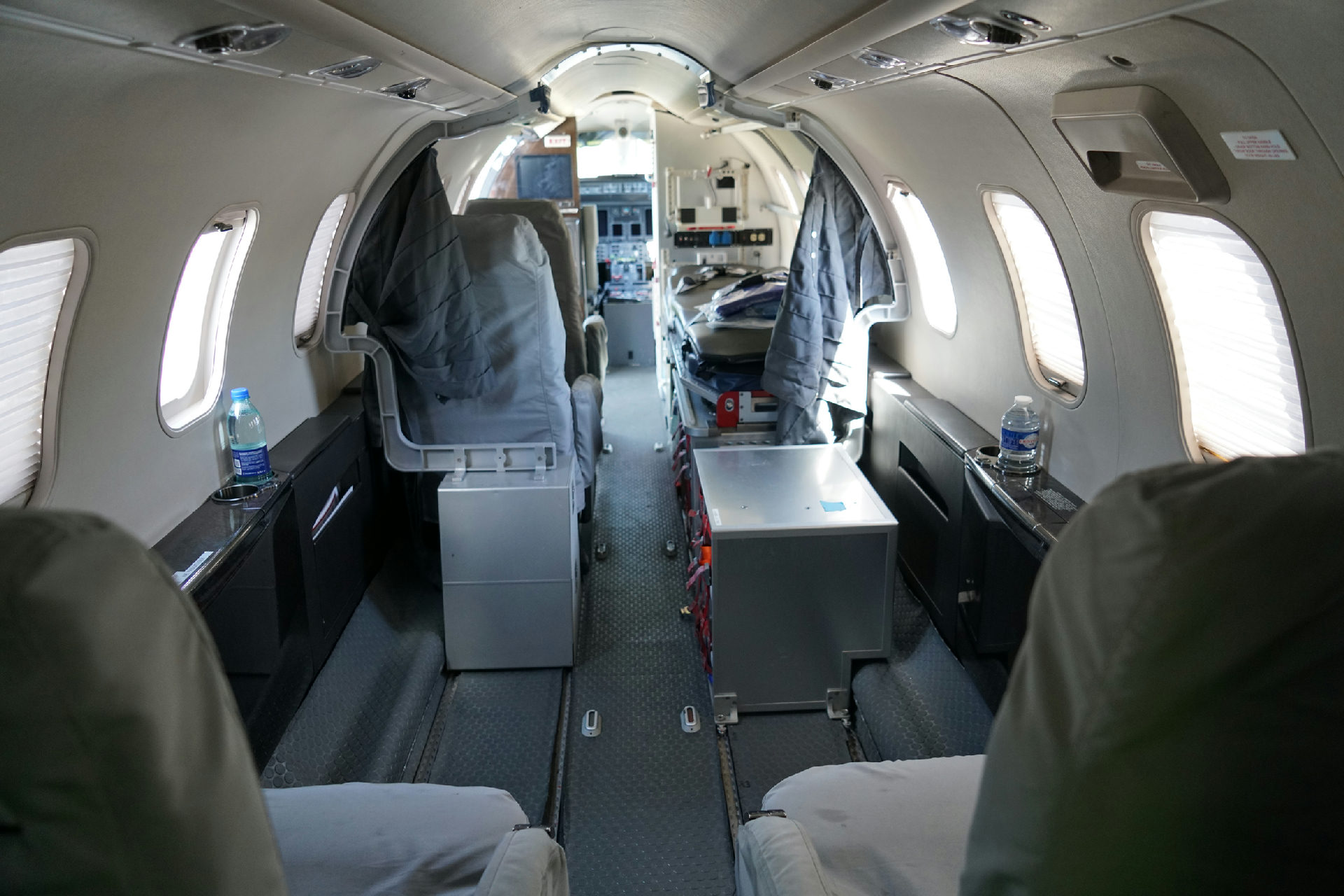

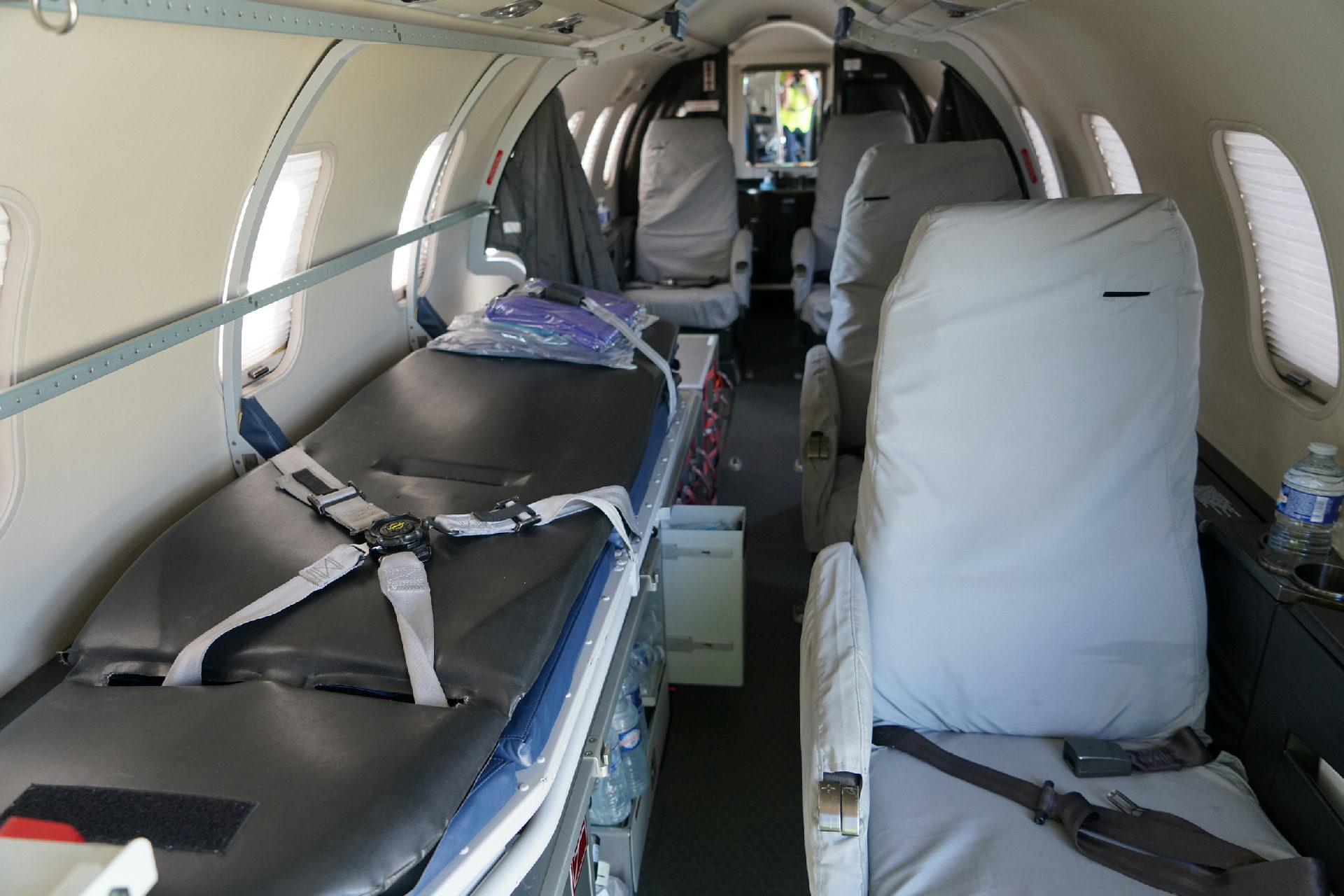

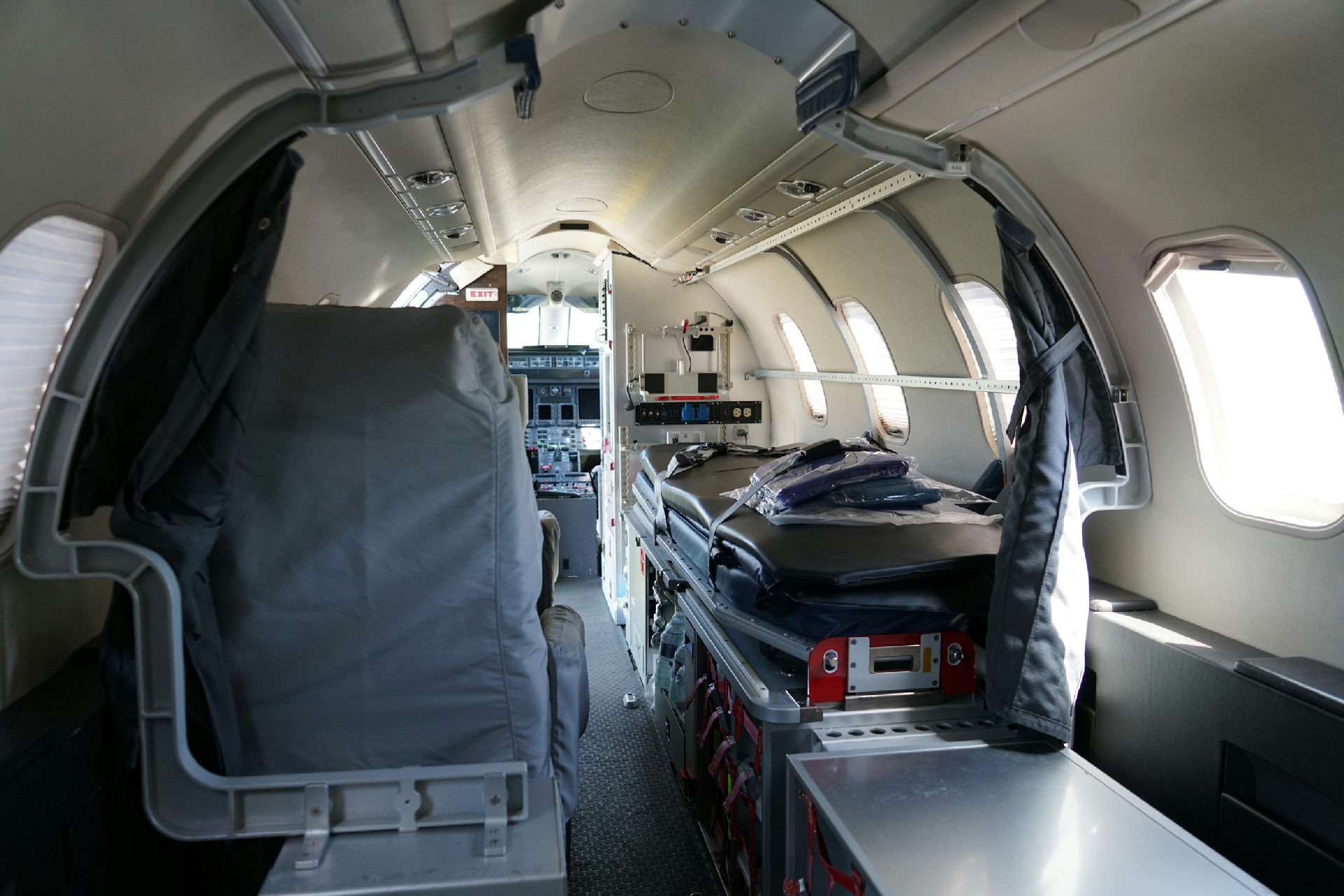

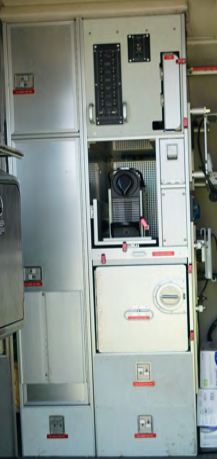

Current EMS configuration. The executive interior for 9 passengers is stored and will be delivered to the new owner.

EXTERIOR

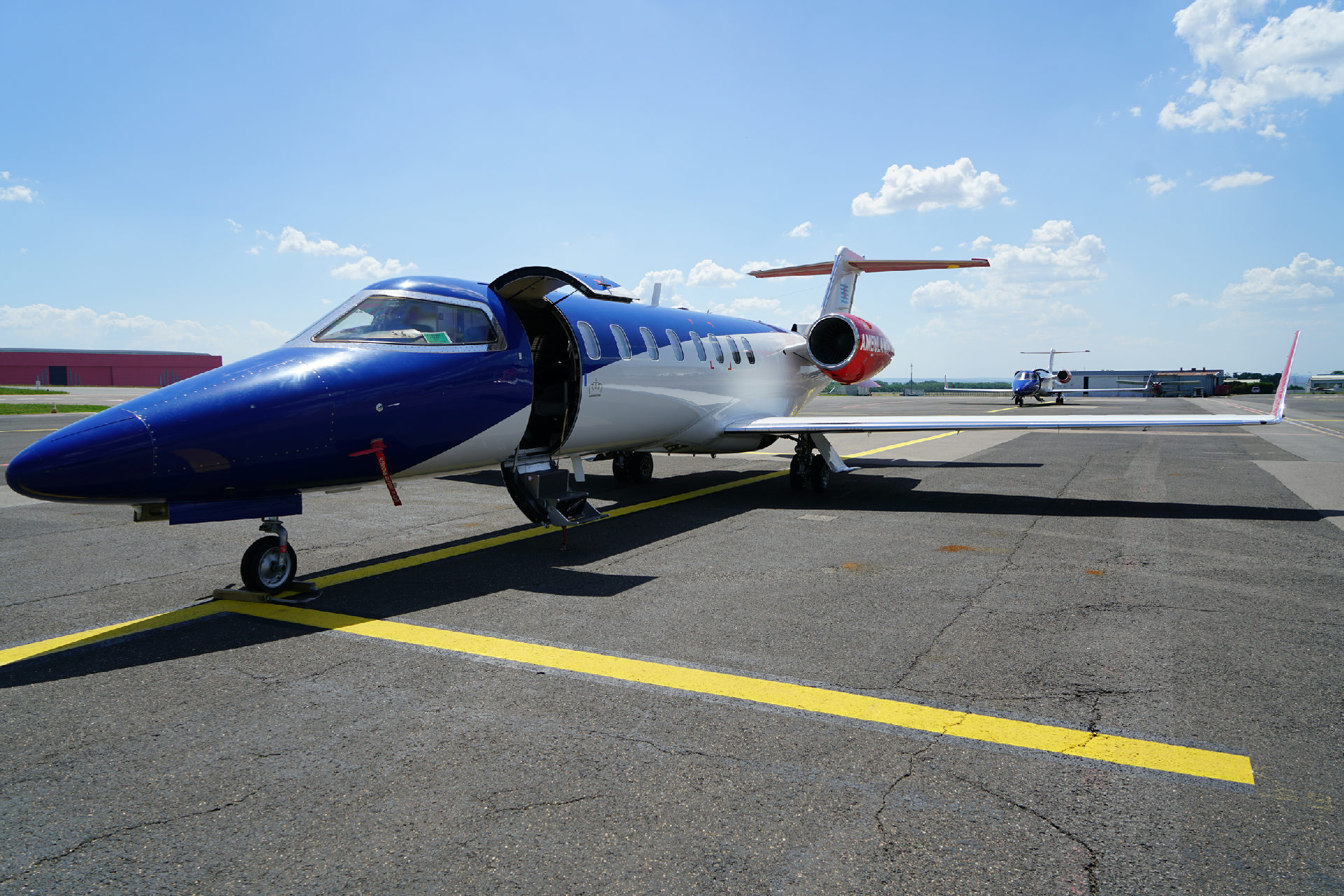

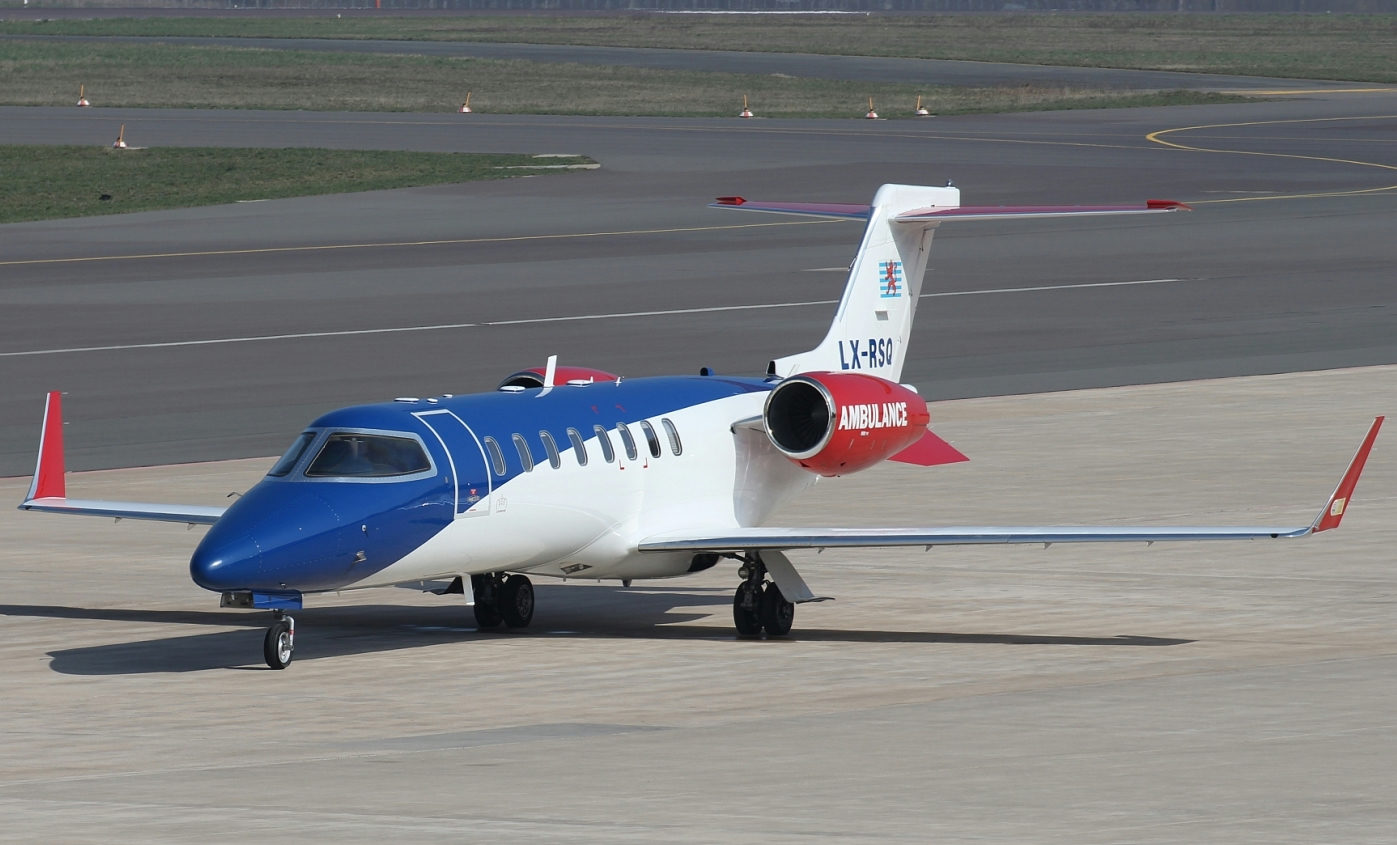

White with medium blue, engines and winglets in red
