Description

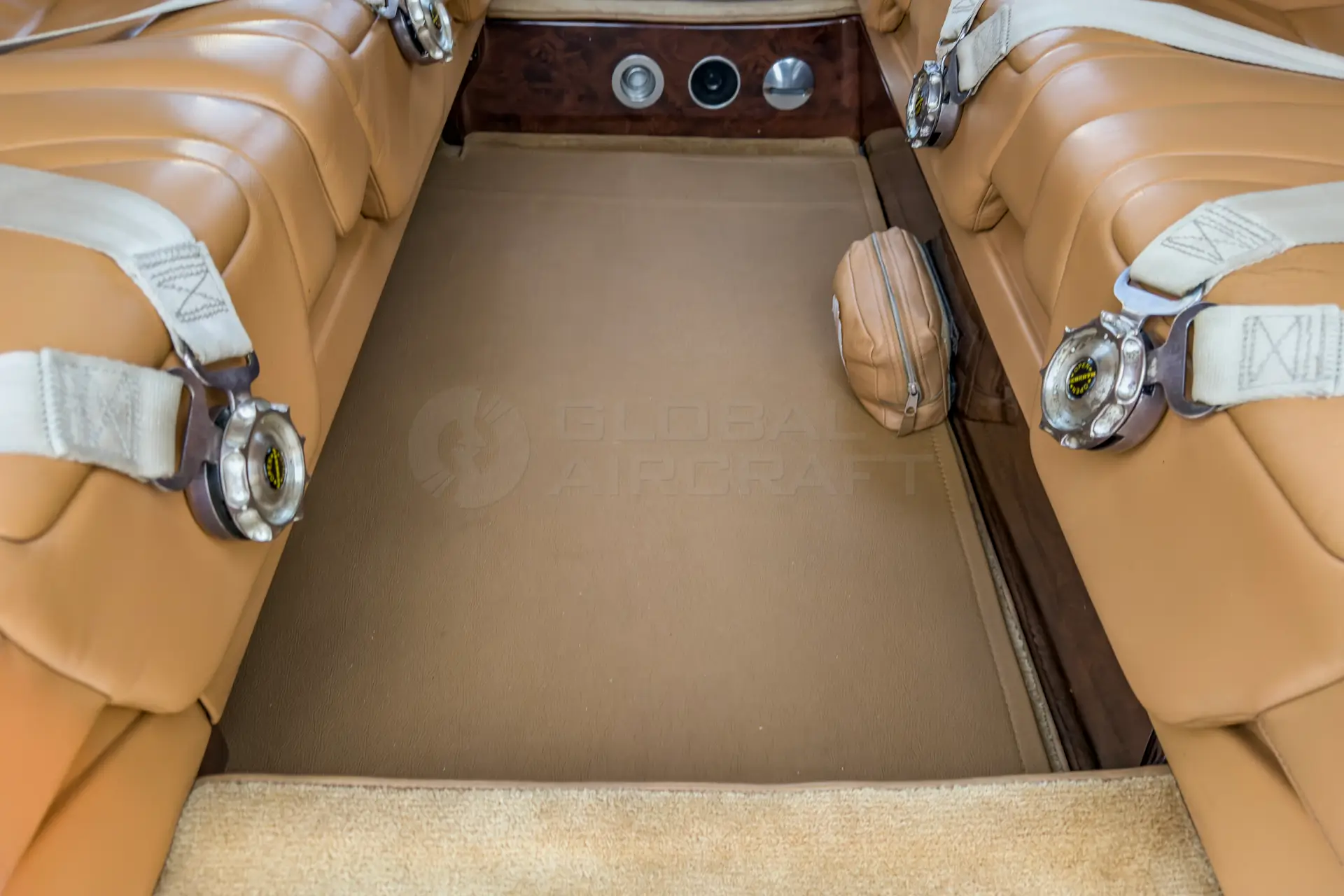

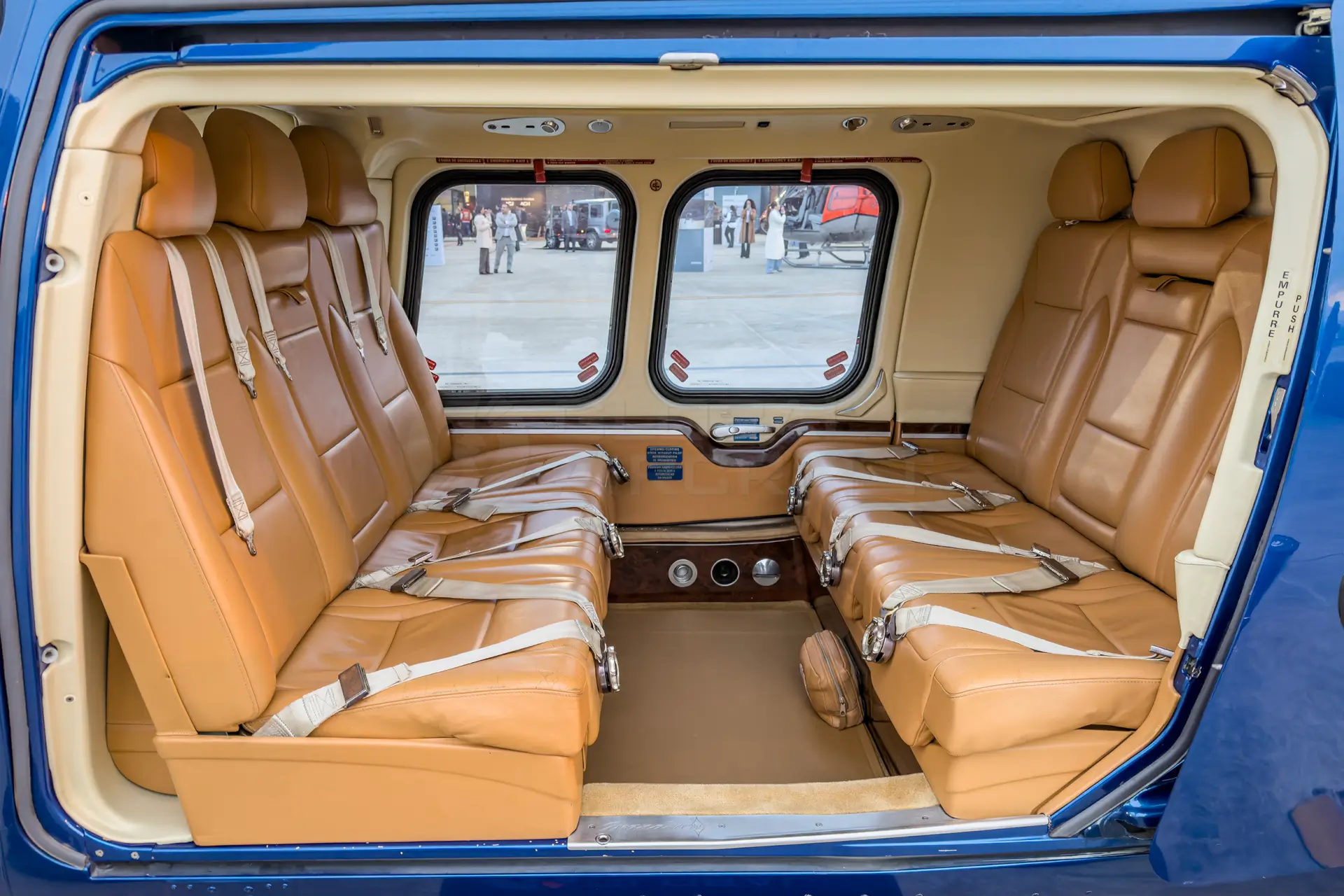

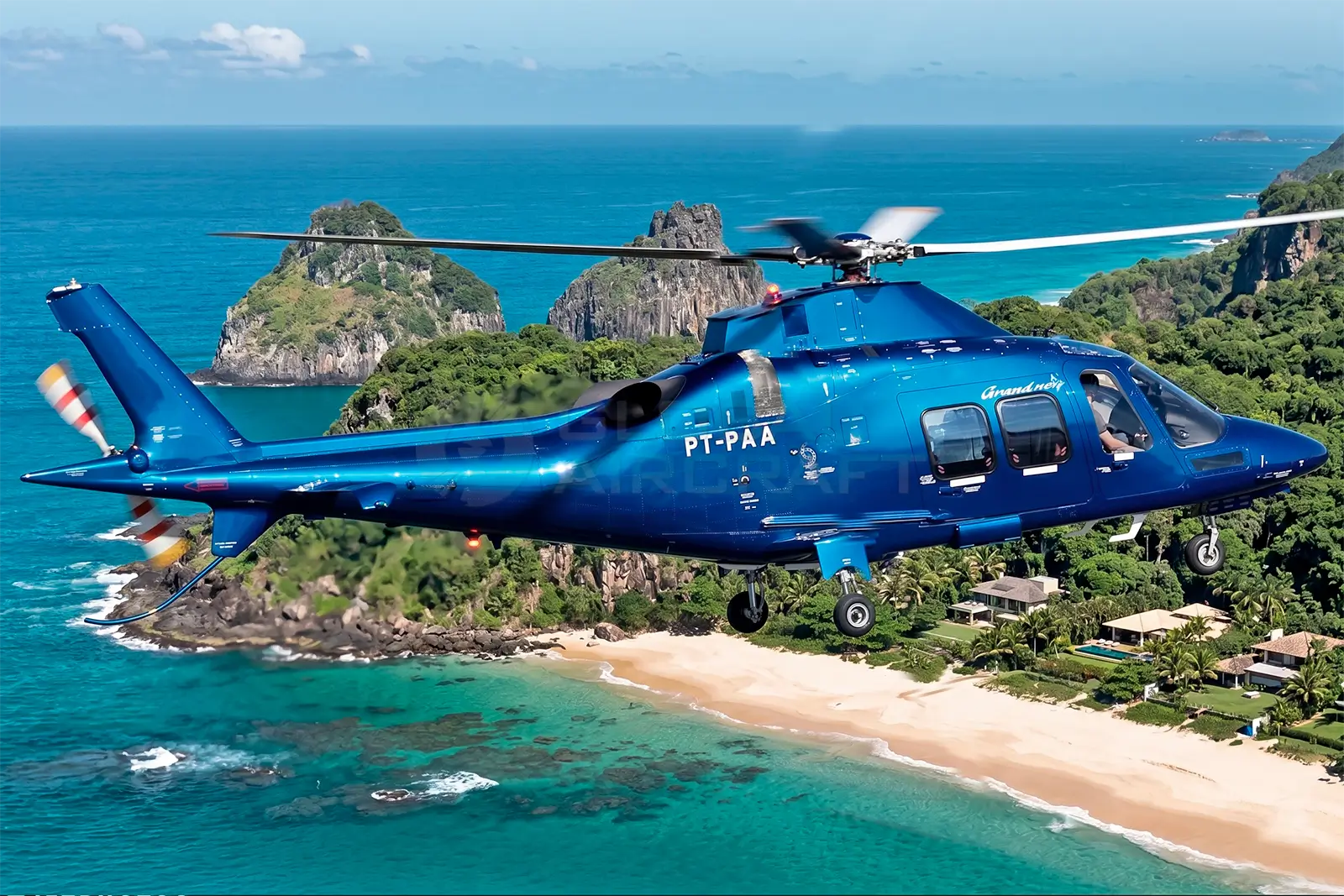

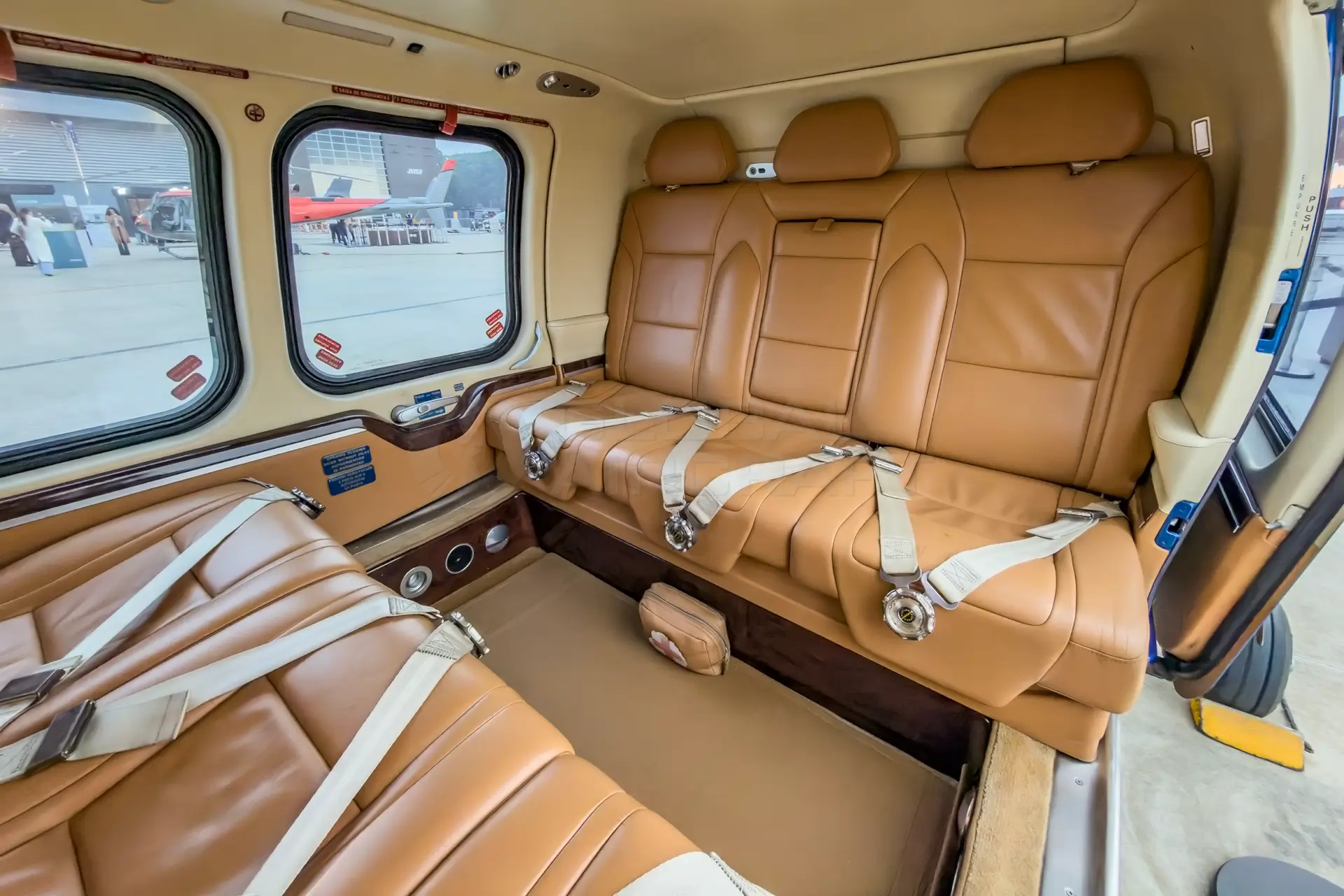

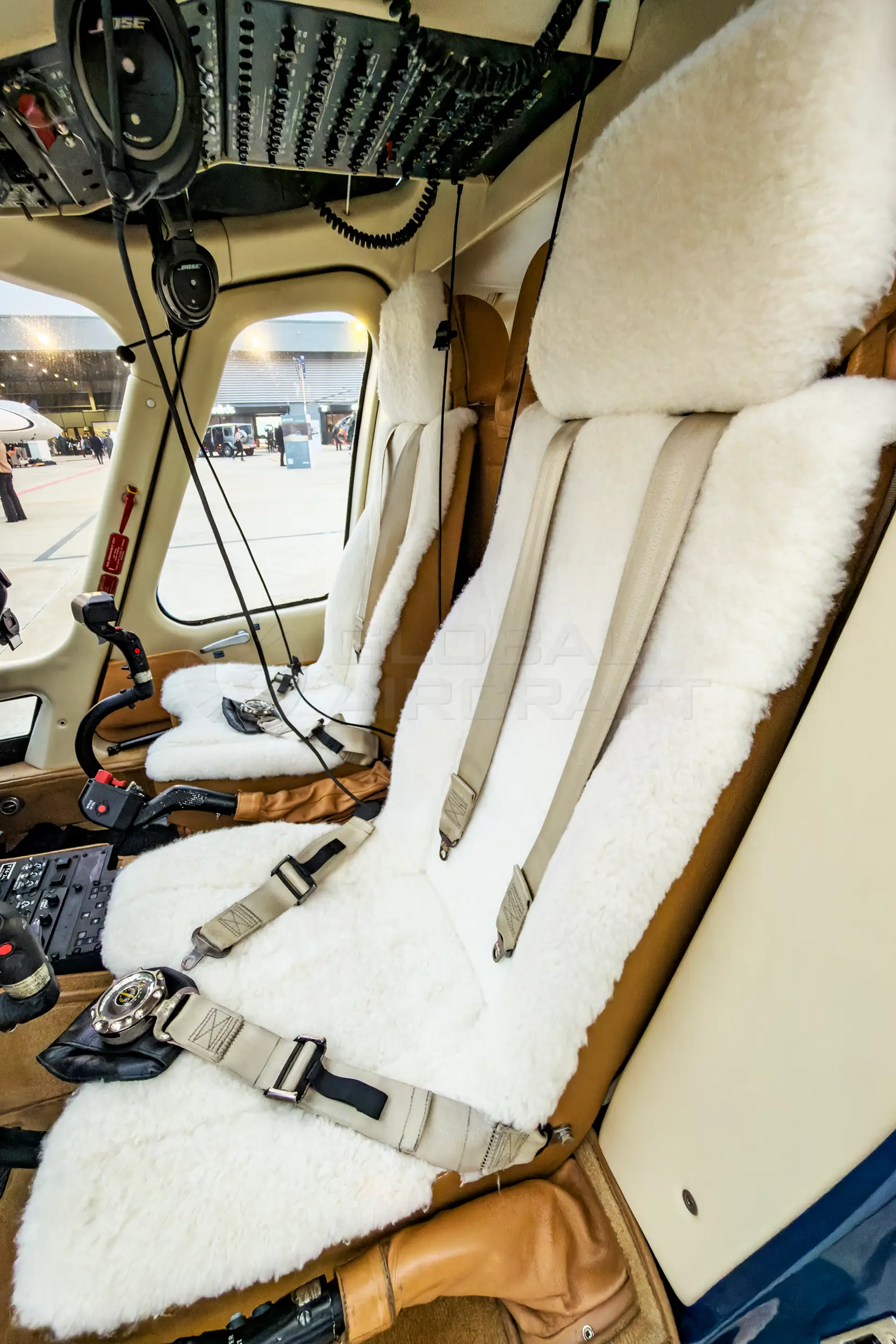

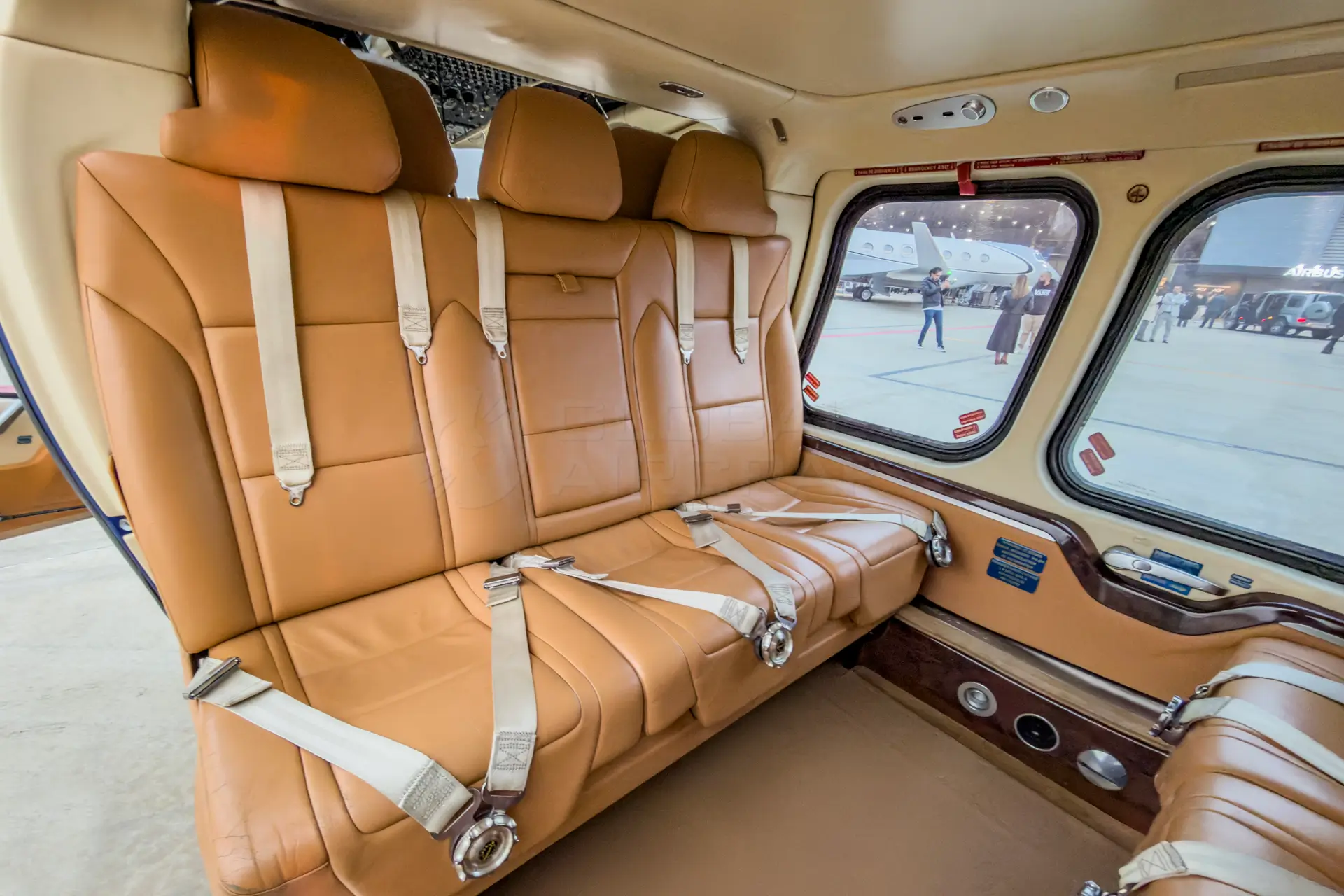

AW109SP Grand New 2013, registered in Brazil, with 2,761 hours total time since new and 1,239 hours available. One owner and one crew since new, maintenance up to date and HSI of the PW207C engines already completed. The cockpit features dual display EFIS for pilot and co-pilot with built-in FMS, ESIS, dual duplex four-axis digital AFCS with integrated flight director, Collins RMS RTU-4210, VHF-4000E, NAV/ILS/ADF NAV-4000, DME-4000, ALT-4000 radar altimeter, second AHRS and ADU, Chelton GPS/SBAS for pilot and co-pilot, 8.4" central display, and NAT digital audio system. The package includes Euronav V digital map, TAS-620 Avidyne, RDR 2000 radar, dual controls, rotor brake, impact-resistant fuel system of 213 gallons, ECS air conditioning, baggage compartment extension, and tinted double windows. Executive interior for 7 passengers and 1 pilot.
Specifications
Avionics & Equipment

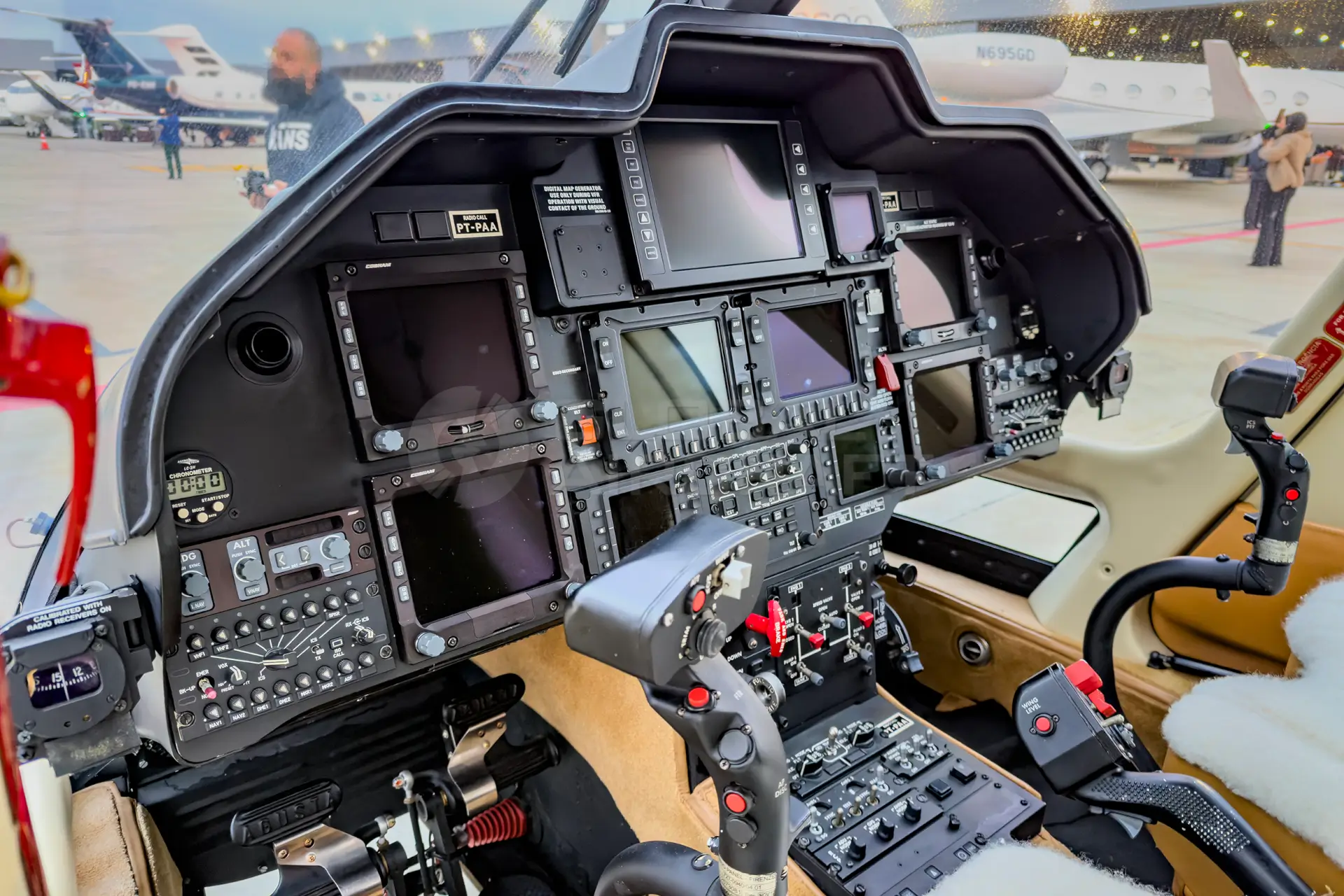

- Pilot flight/navigation EFIS (2 displays) with embedded FMS and RBP
- Co-pilot flight/navigation EFIS (2 displays) with embedded FMS and RBP
- Reversionary Control Panel (RCP)
- EFIS pilot/co-pilot synchronization (FMS data)
- Electronic Standby Instrument System (ESIS)
- Radio Management System Collins RTU-4210
- VHF/AM Collins VHF-40000E
- VOR/ILS/ADF Collins NAV-4000
- DME Collins DME-4000
- Radar altimeter Collins ALT-4000
- Second AHRS and second Air Data Unit
- GPS/SBAS Chelton pilot and co-pilot integrated into EFIS/FMS
- NAT digital audio system (DACS)
- Digital dual duplex 4-axis AFCS with Flight Director
- 8.4" cockpit central display
- Integrated Euronav V digital map into FMS
- Traffic Advisory System TAS-620 Avidyne
- Bendix/King RDR 2000 weather radar
- Dual controls and rotor brake
- Impact-resistant fuel system of 213 gal
- NiCd battery 24 VDC 33 Ah
- ECS air conditioning
- Extension of baggage compartment (2.3 m)
- High-intensity strobes on stabilizer
- LH electric passenger step
- Tinted double windows
- Artex C406-N HM ELT
- Autopilot
- Weather Radar
- TCAS
